HP-HA-19SG-U4060-R10

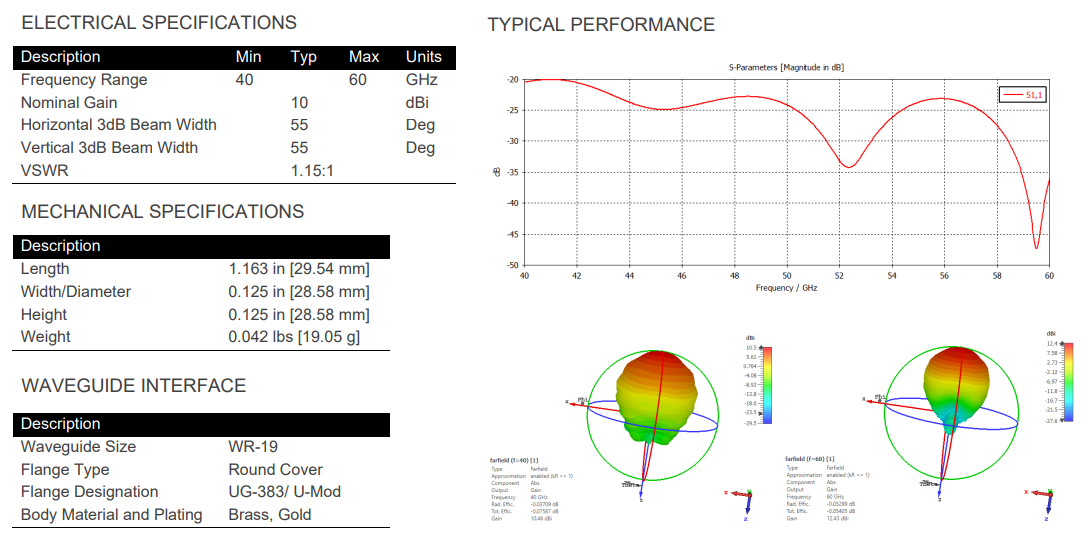

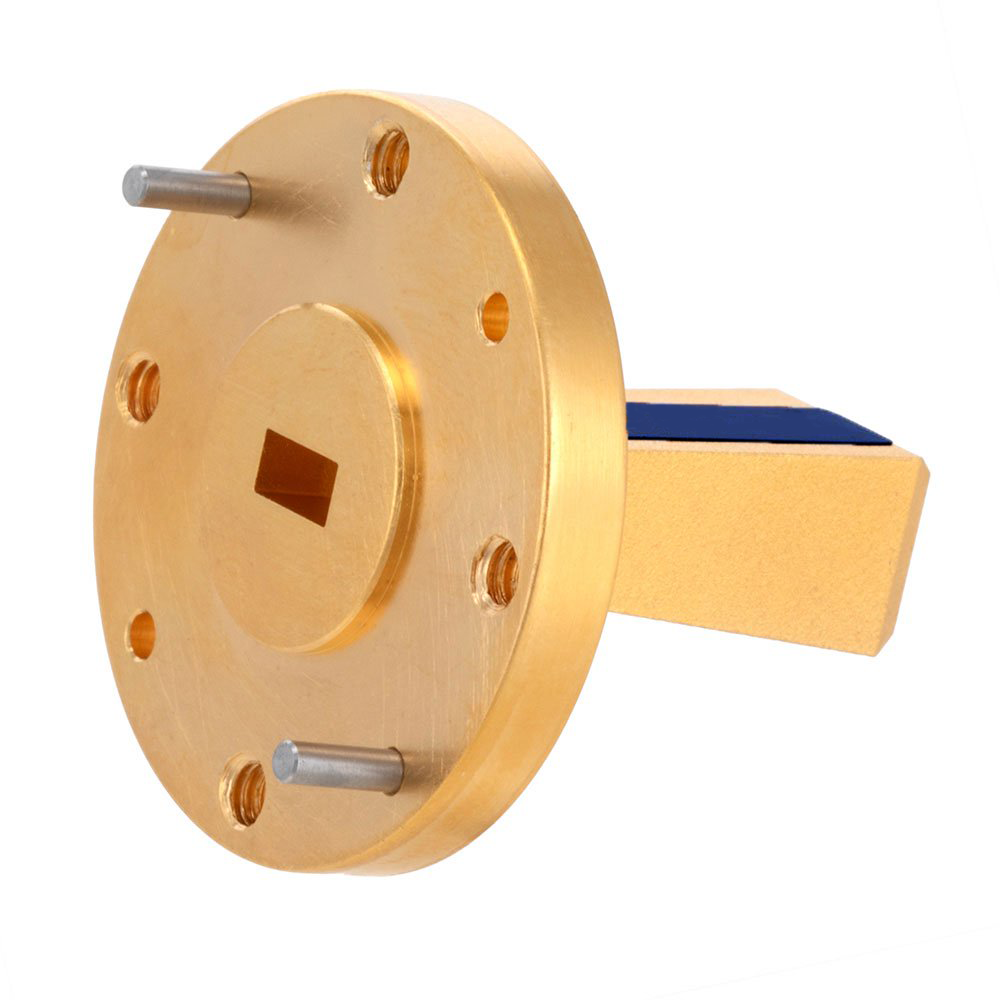

Waveguide standard gain horn antennas are used in a wide variety of applications due to their high-power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. The HP-HA-19SG-U4060-R10 horn antenna operates from 40 GHz to 60 GHz with a nominal gain of 10 dBi. This standard gain horn antenna has a gold-plated brass body and a precision tolerance UG-383/U-Mod round cover flange. The HP-HA-19SG-U4060-R10 WR-19 waveguide standard gain horn antenna offers low gain variation across its operating frequency range.
