HP-HA-19CG-U5058-C10

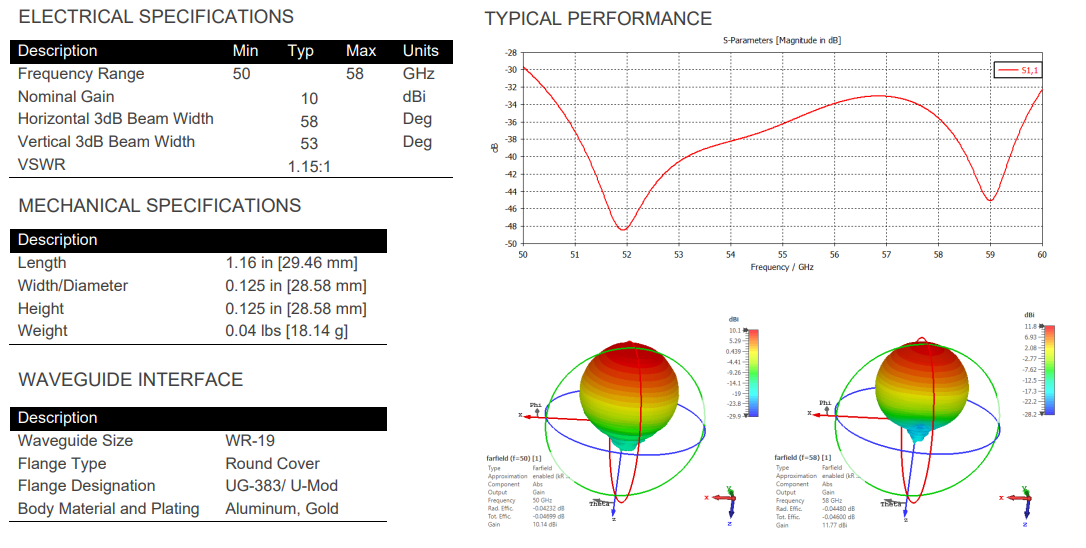

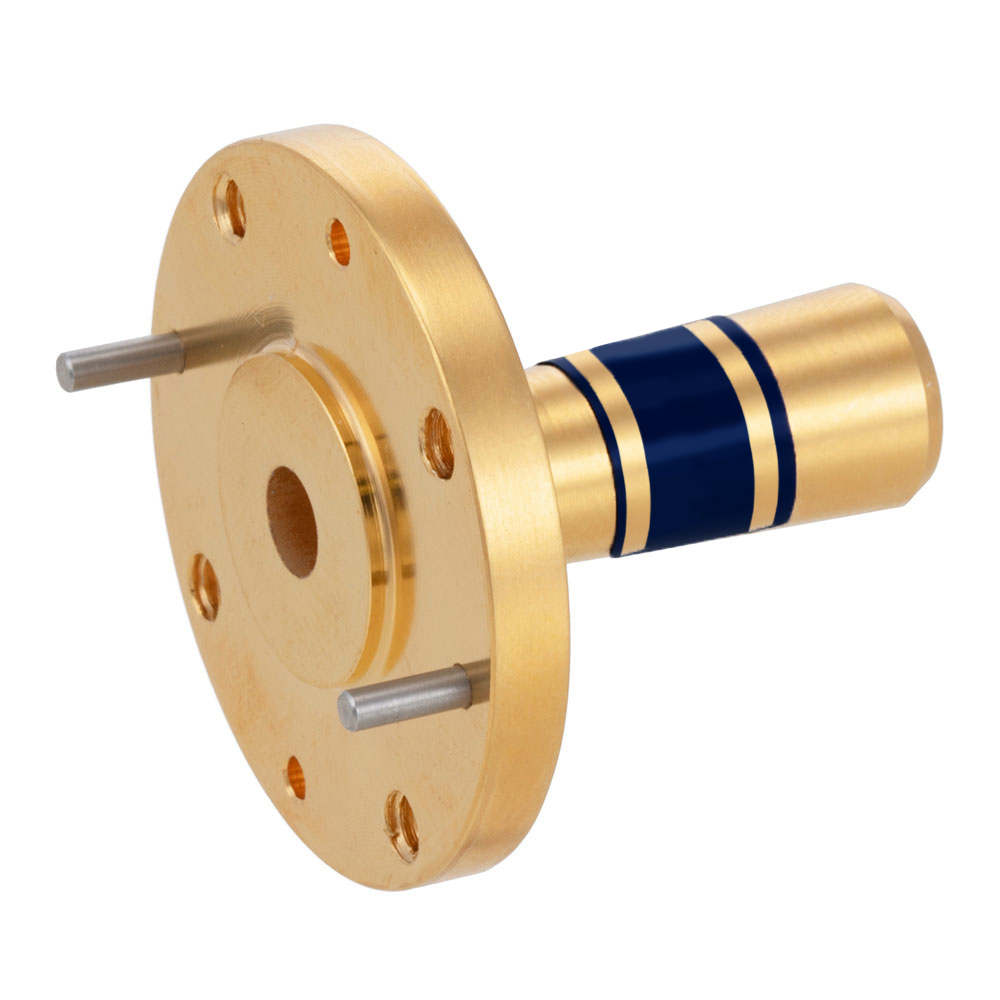

Waveguide conical gain horn antennas are used in a wide variety of applications due to their high-power handling capability, low loss, high directivity, and nearconstant electrical performance across a broad bandwidth. The HP-HA-19CG-U5058-C10 horn antenna operates from 50 GHz to 58 GHz with a nominal gain of 10 dBi. This conical gain horn antenna has a gold-plated brass body and a precision tolerance UG-383/U-Mod round cover flange. The HP-HA-19CG-U5058-C10 WR-19 waveguide conical gain horn antenna offers low gain variation across its operating frequency range.
