HP-HA-10SG-W75110-R10

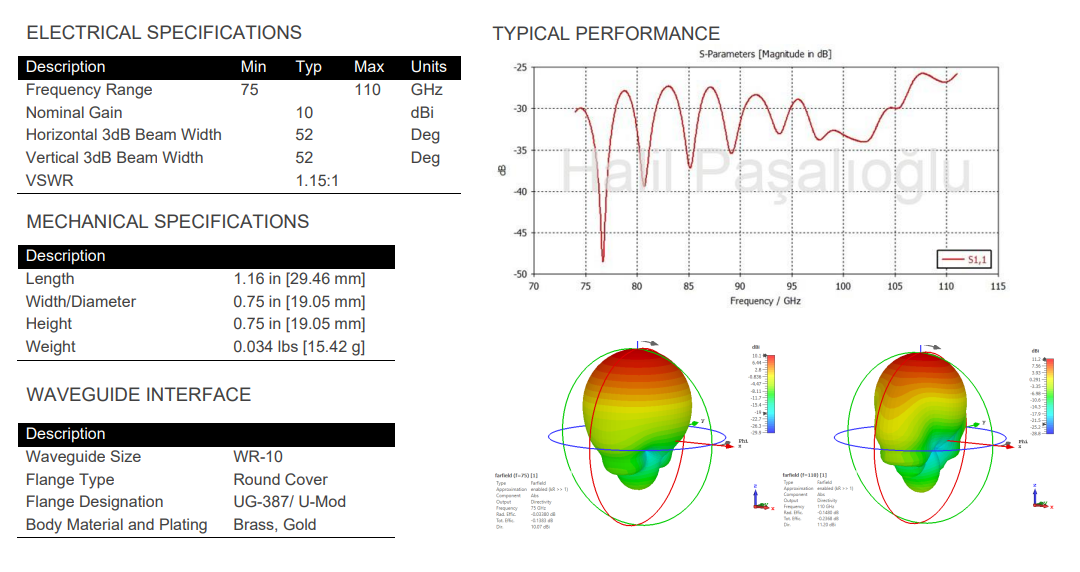

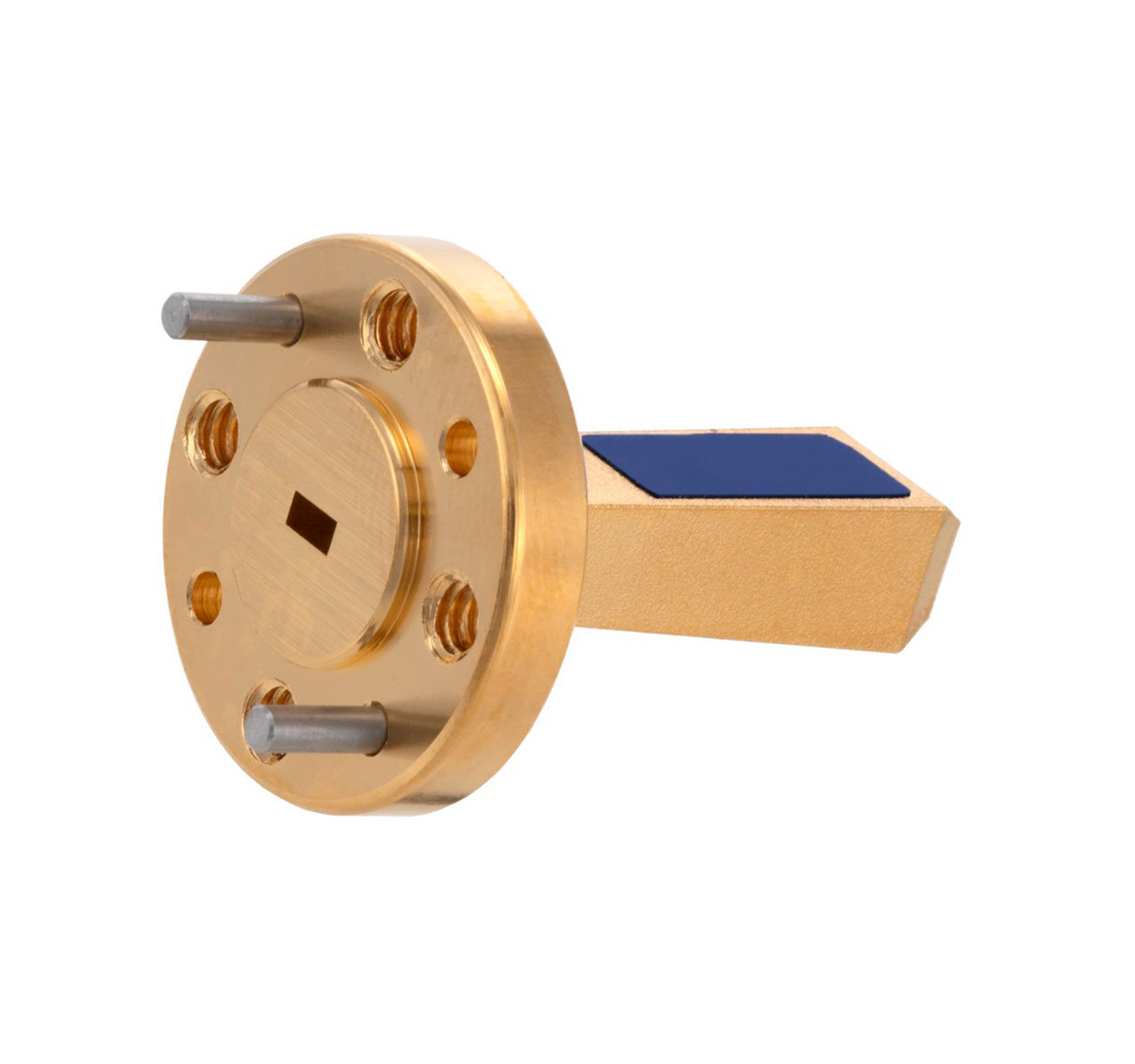

Waveguide standard gain horn antennas are used in a wide variety of applications due to their high-power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. The HP-HA-10SG-W75110-R10 horn antenna operates from 75 GHz to 110 GHz with a nominal gain of 10 dBi. This pyramidal horn antenna has a gold-plated brass body and a precision tolerance UG-387/U-Mod round cover flange. The HP-HA-10SG-W75110-R10 WR-10 waveguide standard gain horn antenna offers low gain variation across its operating frequency range.
