HP-HA112SG-X710-R20

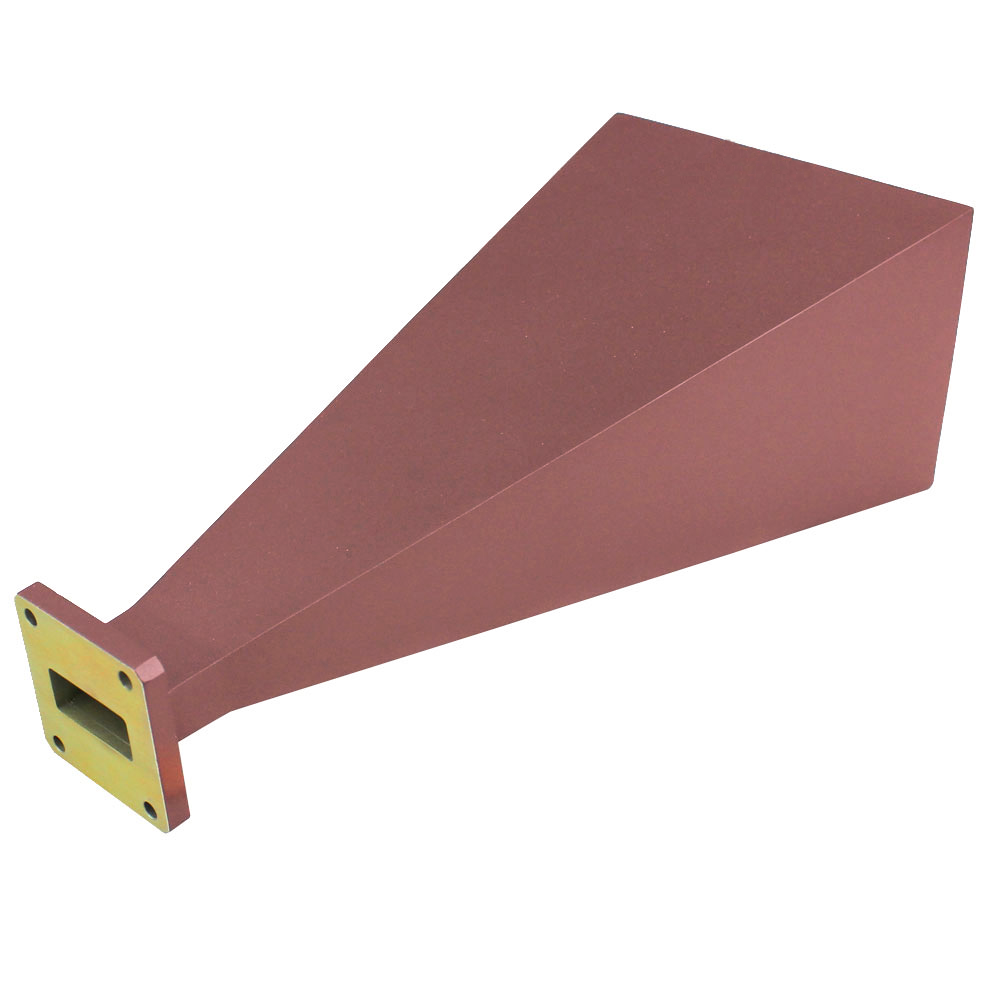

Waveguide standard gain horn antennas are used in a wide variety of applications due to their high-power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. The HP-HA112SG-X710-R20 horn antenna operates from 7.05 GHz to 10 GHz with a nominal gain of 20 dBi. This pyramidal horn antenna has an aluminum body and a precision tolerance UG-51/U-Mod round flange. The HP-HA-112SG-X710-R20 WR-112 waveguide standard gain horn antenna offers low gain variation across its operating frequency range.
