HP-HA-15SF-V5565-R10

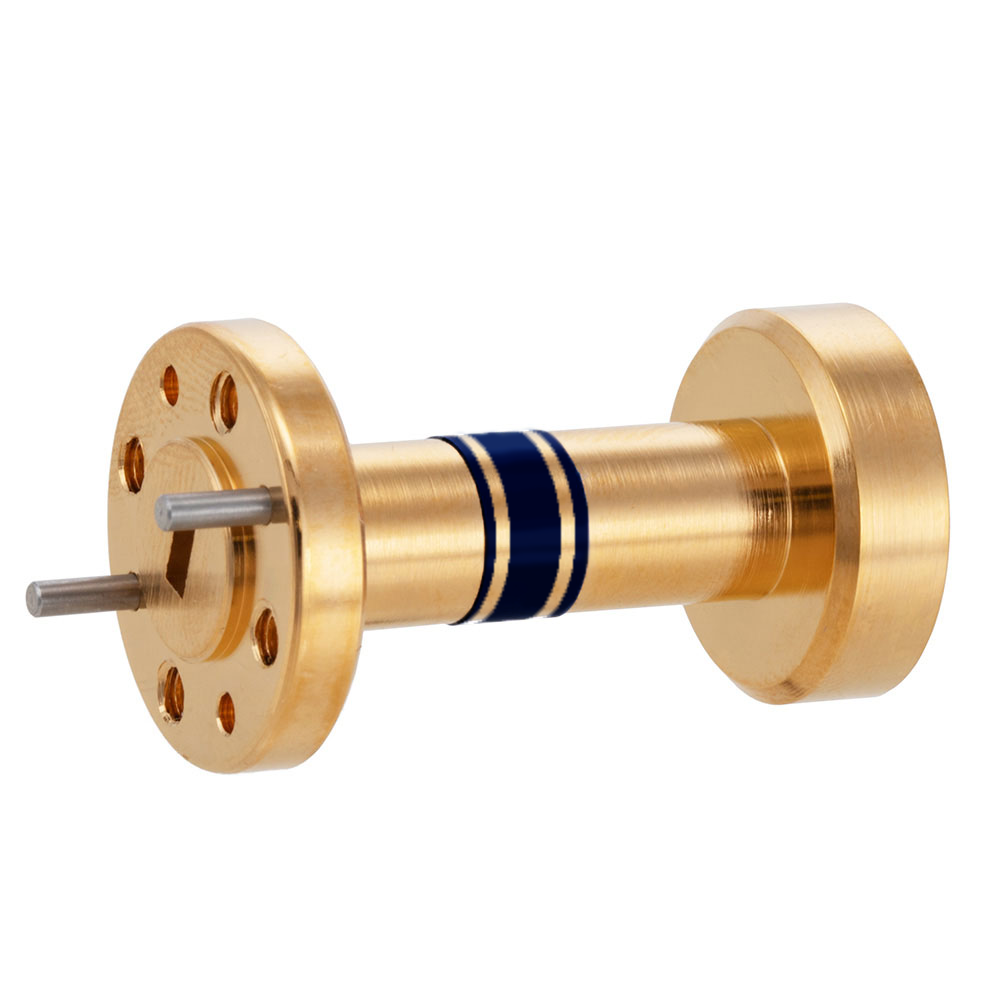

Waveguide wide angle scalar feed horn antennas are used in a wide variety of applications due to their high-power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. The HP-HA-15SF-V5565-R10 horn antenna operates from 55 GHz to 65 GHz with a nominal gain of 10 dBi. This wide angle scalar feed gain horn antenna has a gold-plated brass body and a precision tolerance UG-385/U-Mod round cover flange. The HP-HA-15SF-V5565-R10 WR-15 waveguide wide angle scalar feed horn antenna offers low gain variation across its operating frequency range.
