HP-HA-12SF-W7282-R10

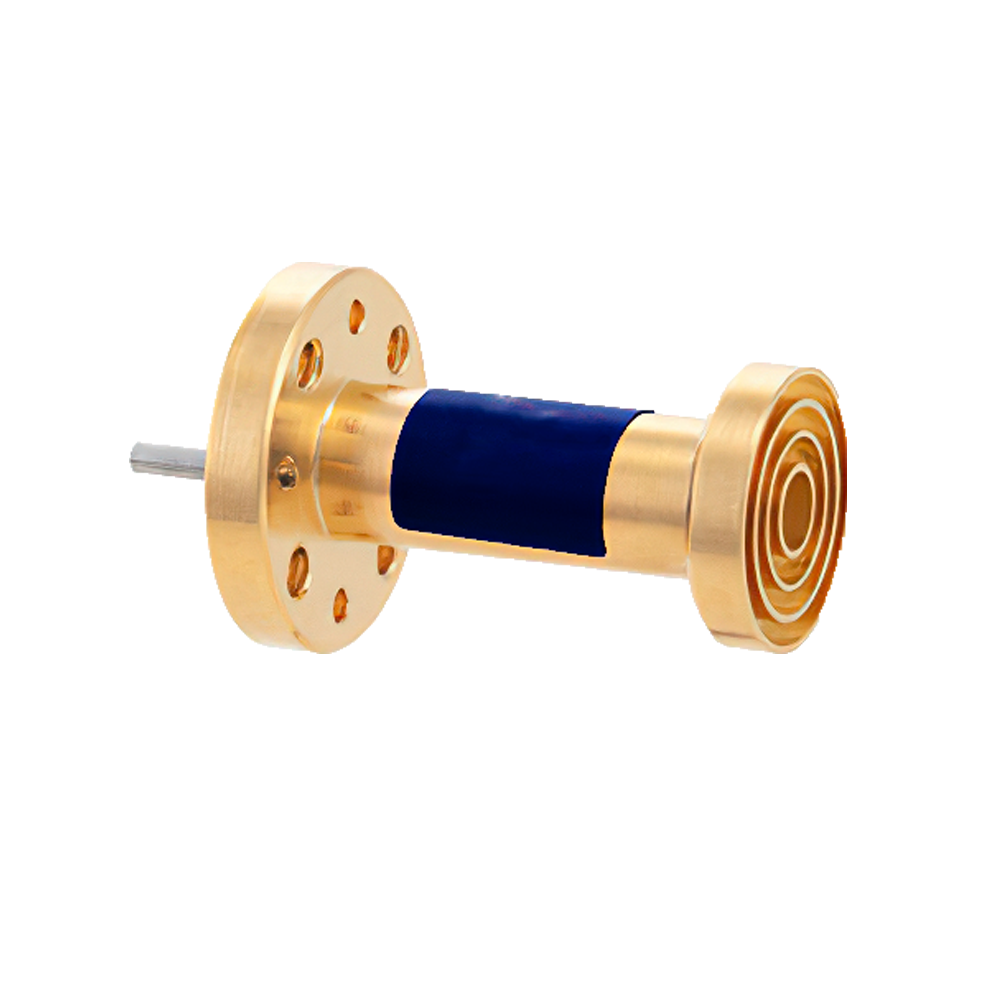

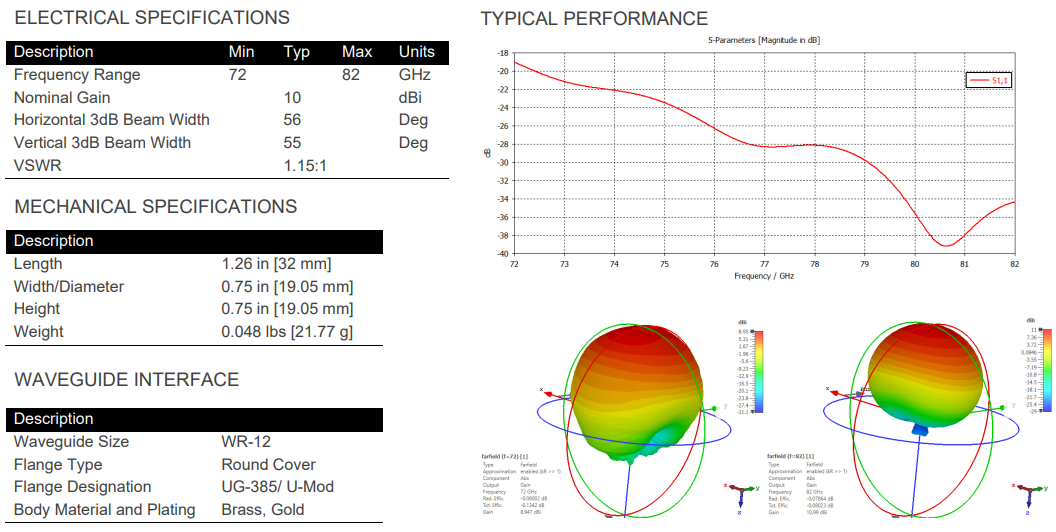

Waveguide wide-angle scalar feed horn antennas are used in a wide variety of applications due to their high-power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. The HP-HA-12SF-W7282-R10 horn antenna operates from 72 GHz to 82 GHz with a nominal gain of 10 dBi. This horn antenna has a gold-plated brass body and a precision tolerance UG-385/U-Mod round cover flange. HP-HA-12SF-W7282-R10 WR-12 waveguide wide-angle scalar feed horn antenna offers low gain variation across its operating frequency range.
