HP-HA-12CG-E6877-C15

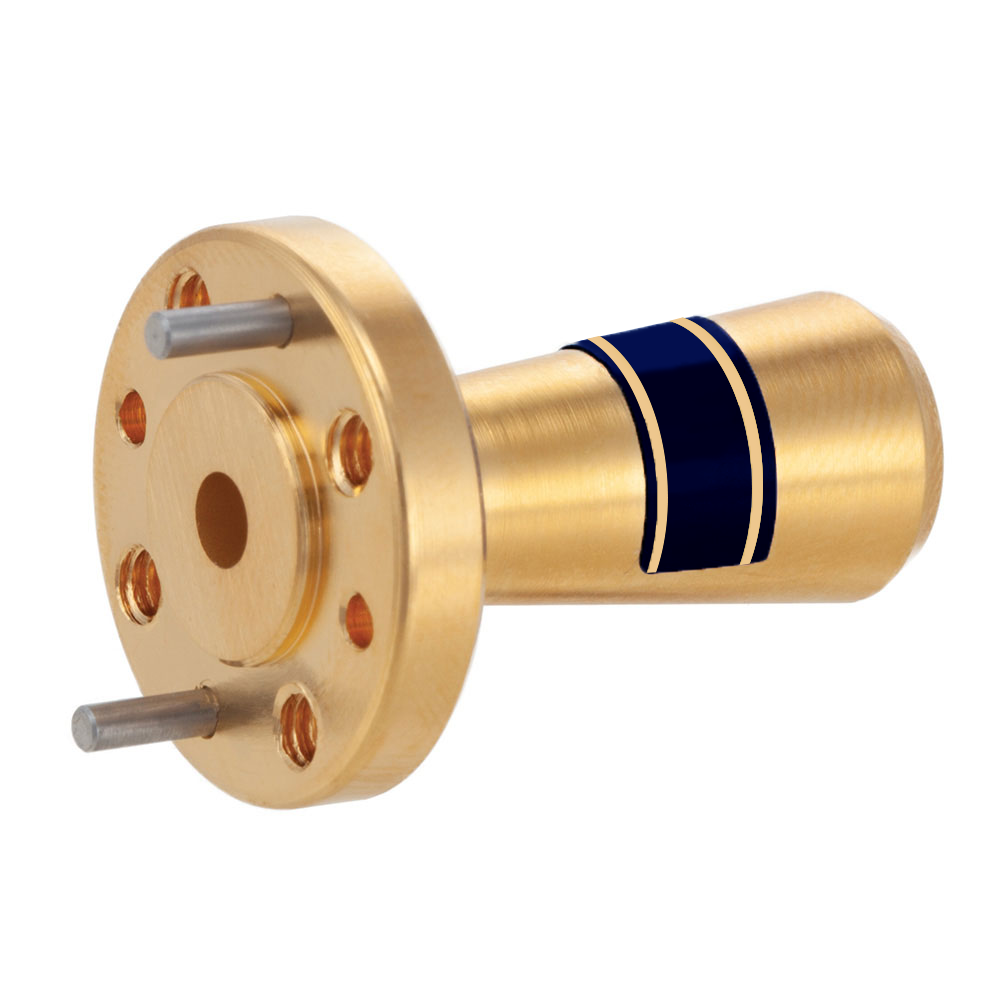

Waveguide conical gain horn antennas are used in a wide variety of applications due to their high-power handling capability, low loss, high directivity, and near-constant electrical performance across a broad bandwidth. The HP-HA-12CG-E6877-C15 horn antenna operates from 68 GHz to 77 GHz with a nominal gain of 15 dBi. This conical gain horn antenna has a gold-plated brass body and a precision tolerance UG-387/U-Mod round cover flange. The HP-HA-12CG-E6877-C15 WR-12 waveguide conical gain horn antenna offers low gain variation across its operating frequency range.
